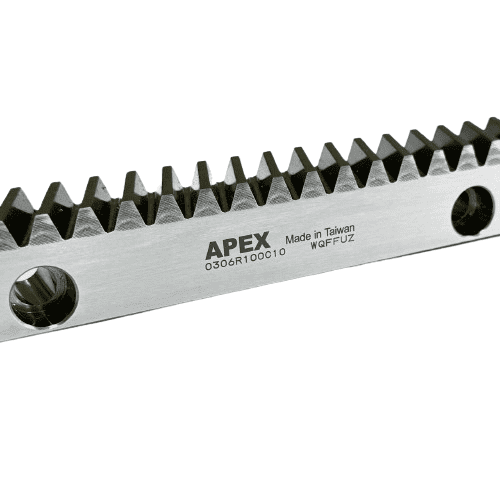

0306R100C10 Helical rack

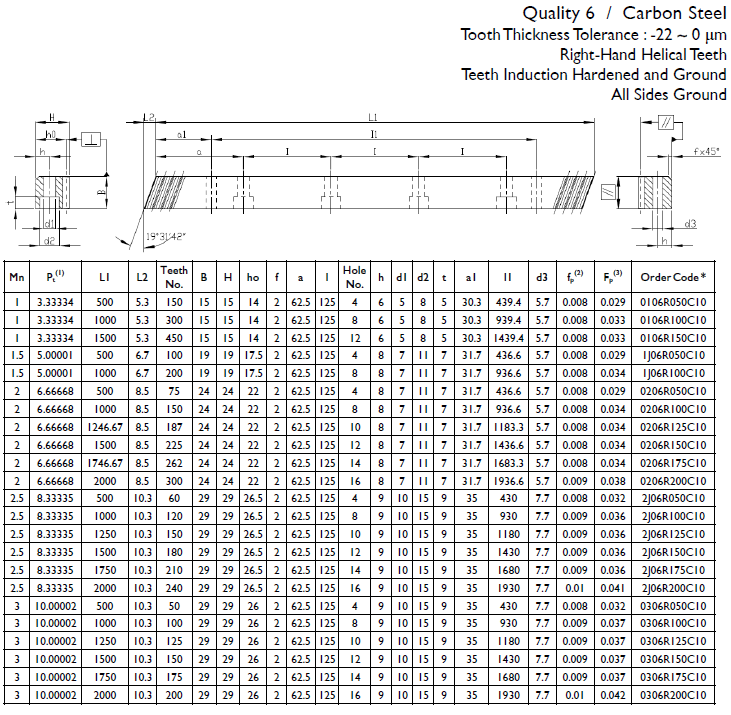

Quality 6 / Carbon Steel

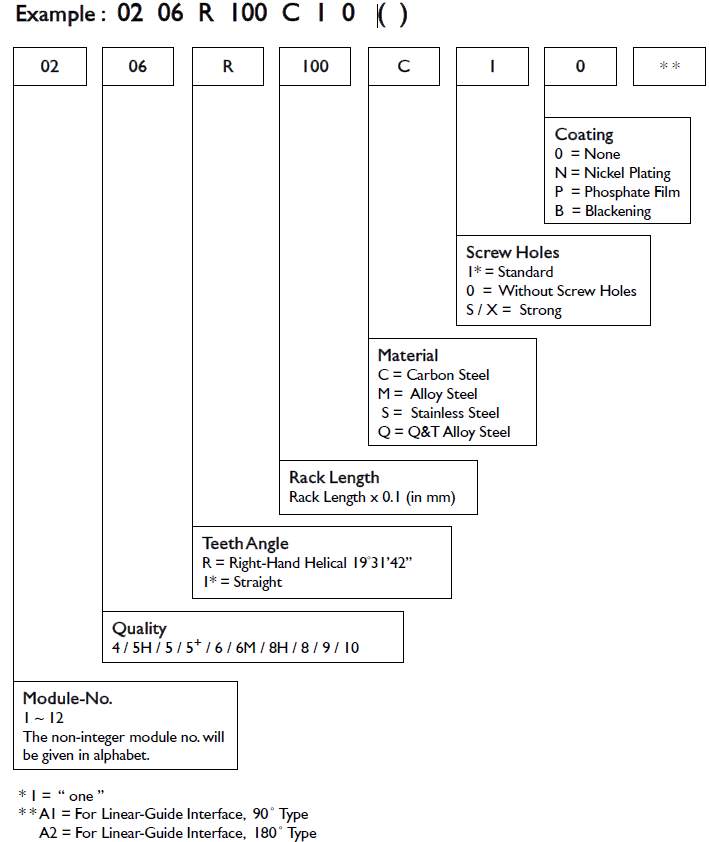

03 - Module
06 - Quality
R - Teeth angle (right-hand helical)
100 - Lenght (1000 mm)
C - Material (carbon steel)
1 - screw holes (standard)
0 - Coating (none)

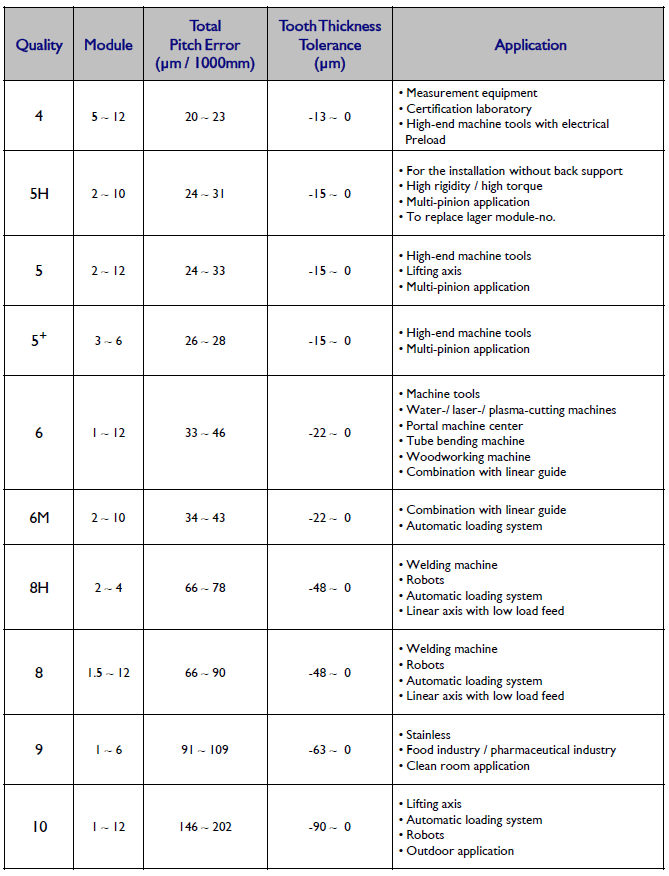

Rack and pinion drive systems with “Quality 6” are recommended for the following applications:
• Machine tools;
• Water-/ laser-/ plasma-cutting machines;
• Portal machine center;
• Tube bending machine;
• Woodworking machine;
• Combination with linear guide.

Analog:
• 246043 GUDEL;
• 246143 GUDEL;
• CHTGH03010-DIN6 YYC;
• MHTG03010-DIN6 YYC;
