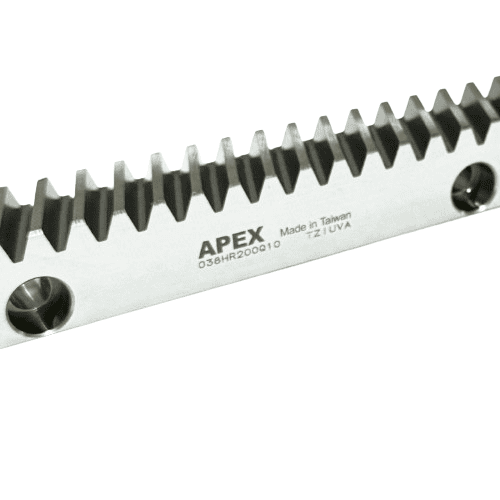

038HR200Q10 Helical rack

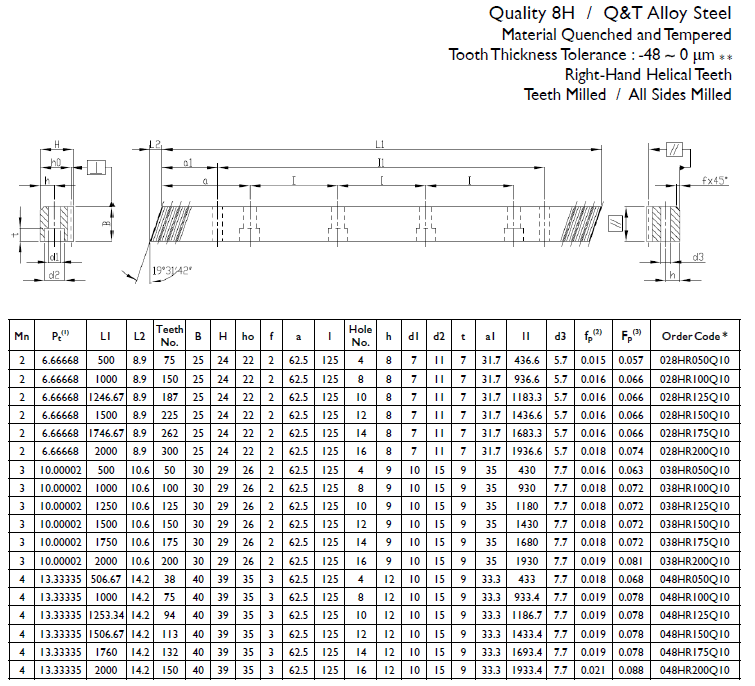

Quality 8H / Q&T Alloy Steel

APEX Rack and pinion drive systems can replace ball screw drive systems, providing greater travel without adding inertia and higher force capacity. Linear motors can also be replaced by rack and pinion drives to provide lower cost and similar performance in many applications.
High precision machine tools and measuring systems can be designed using rack and pinion drives.

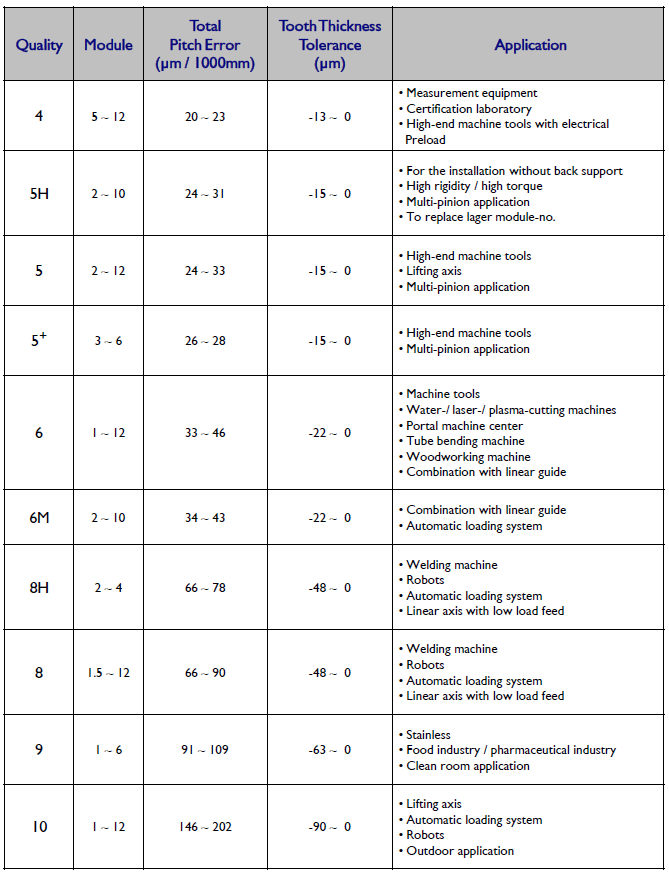

Rack and pinion drive systems with “Quality 8H” are recommended for the following applications:
• Welding machine;
• Robots;
• Automatic loading system;
• Linear axis with low load feed.

Analog:
• 157043 GUDEL;
• CHTM03020-DIN8 YYC;
• CHTMQ03020-DIN8 YYC;
