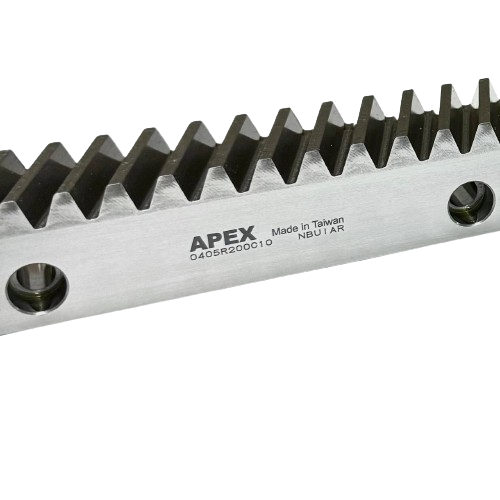

0405R200C10 Helical rack

Quality 5 / Carbon Steel

APEX Rack and pinion drive systems can replace ball screw drive systems, providing greater travel without adding inertia and higher force capacity. Linear motors can also be replaced by rack and pinion drives to provide lower cost and similar performance in many applications.
High precision machine tools and measuring systems can be designed using rack and pinion drives.

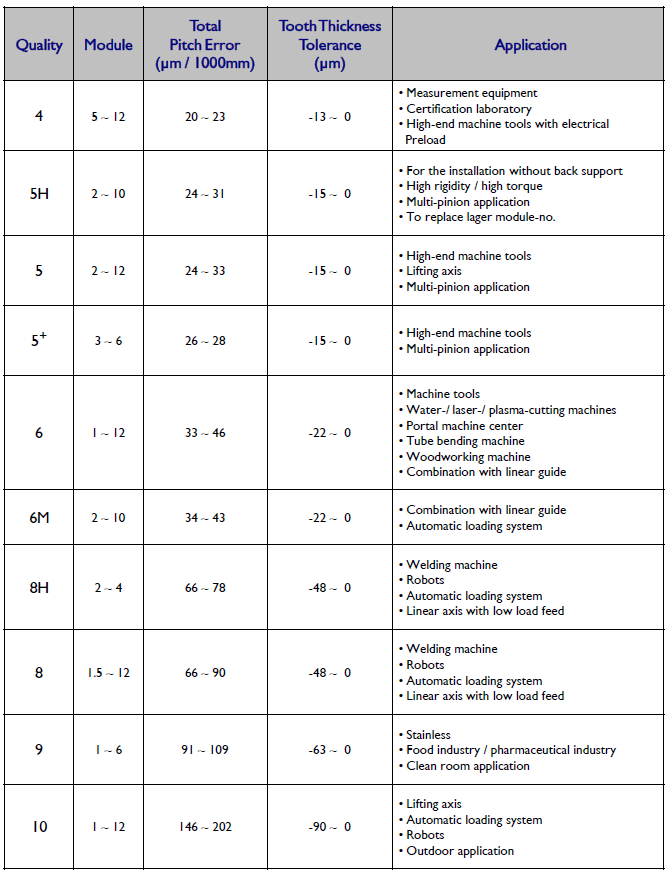

Rack and pinion drive systems with “Quality 5” are recommended for the following applications:
• High-end machine tools;
• Lifting axis;
• Multi-pinion application.

Analog:
• 246053-Q5 GUDEL;
• CHTGH04010-DIN5 YYC;
