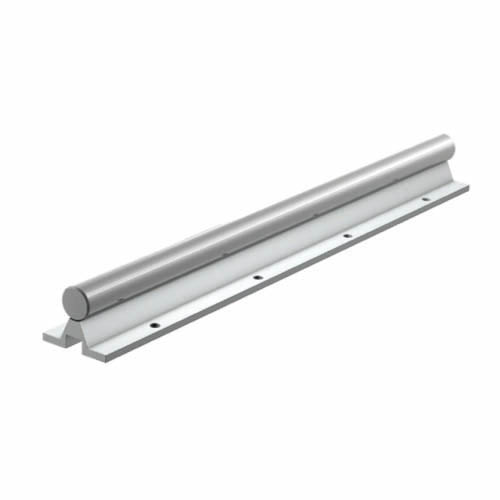

SBR16-MM-h6-C45 Shaft
SBR16-6000-h6-C45 - precision linear chrome-alloyed shaft.
Cross References:
R1014 016 00 (Rexroth)
FTSN16GW (FLI)
TSNW16 (INA)
Diameter: 16 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.
Material options: AISI 304, AISI 440, GCr15, C53, C60, X40Cr14,100Cr6, X90CrMoV18.
Machining features:
- Cut to length
- Axial threading
- Radial threading
- End milling
- V-groove cutting
- Circlip groove cutting
- Thread cutting
- Parallel end milling
- Per customer blueprints.
| Shaft diameter: 16 |
