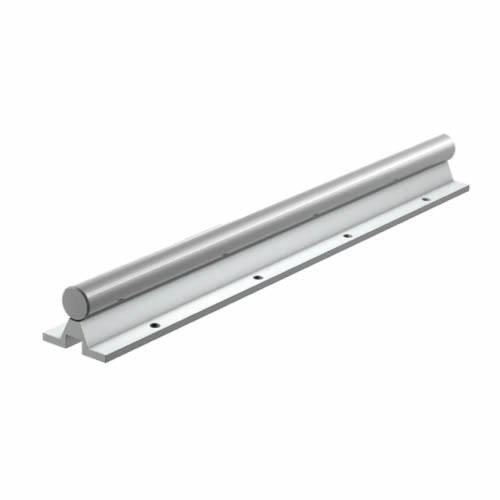

SBR50-MM-h6-C45 Shaft
Chrome plated shaft with shaft support
Cross References:
R1014 050 00 (Rexroth)
FTSN50GW (FLI)
TSNW50 (INA)
Diameter: 50 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45 hardened steel.
End machining features:
- Cut to length
- Axial threading
- Radial threading
- End milling
- V-groove cutting
- Circlip groove cutting
- Thread cutting
- Parallel end milling
- Per customer blueprints.
| Shaft diameter: 50 |
