WV15-MM-h6-C45 Shaft

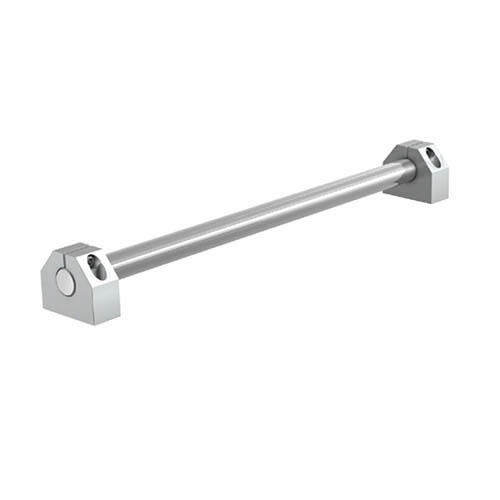

WV15-4000-h6-C45 - precision linear chrome-alloyed shaft with shaft blocks.
Cross References:
R1000 015 00 (Rexroth))
W 15 (FLI)
W15 (INA)
Diameter: 15 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.
Material options: AISI 304, AISI 440, GCr15, C53, C60, X40Cr14,100Cr6, X90CrMoV18.
Machining features:
- Cut to length
- Axial threading
- Radial threading
- End milling
- V-groove cutting
- Circlip groove cutting
- Thread cutting
- Parallel end milling
- Per customer blueprints.

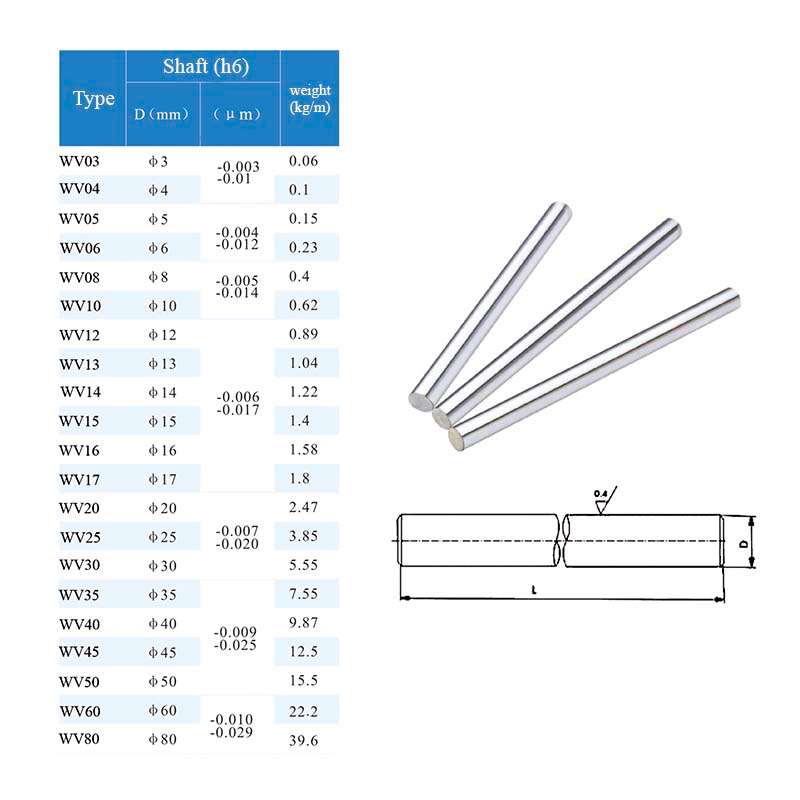

| Shaft diameter: 15 |
