WV50-MM-h6-C45 Shaft
WV50-6000-h6-C45 - precision linear chrome-alloyed shaft with shaft blocks.
Cross References:
R1000 050 00 (Rexroth)
LJM 50 (Ewellix)
W 50 (FLI)
W50 (INA)

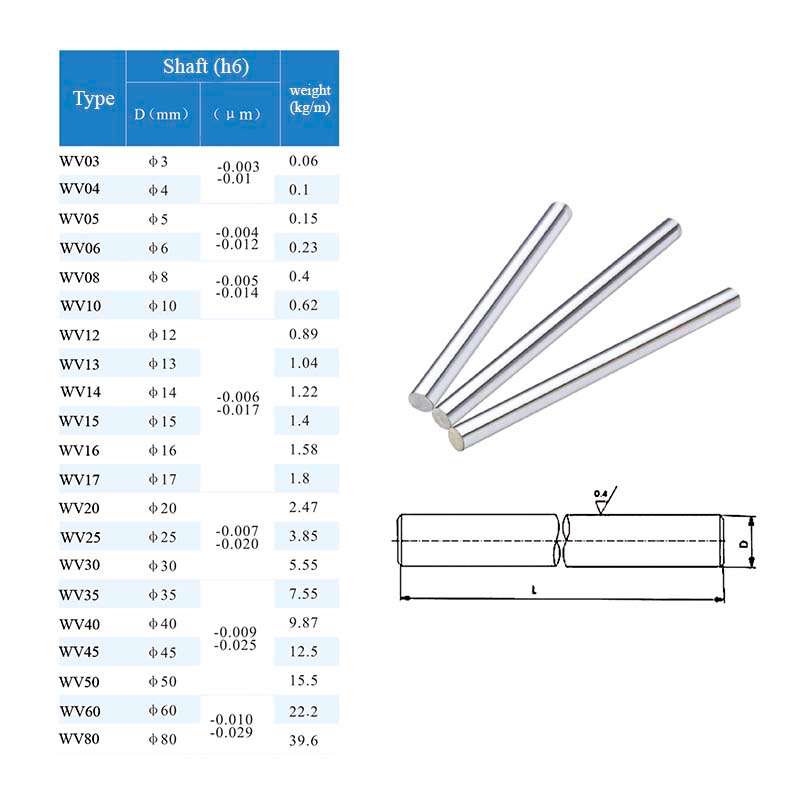

Diameter: 50 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.
Material options: AISI 304, AISI 440, GCr15, C53, C60, X40Cr14,100Cr6, X90CrMoV18.
Machining features: - Cut to length - Axial threading - Radial threading - End milling - V-groove cutting - Circlip groove cutting - Thread cutting - Parallel end milling - Per customer blueprints.
| Shaft diameter: 50 |
