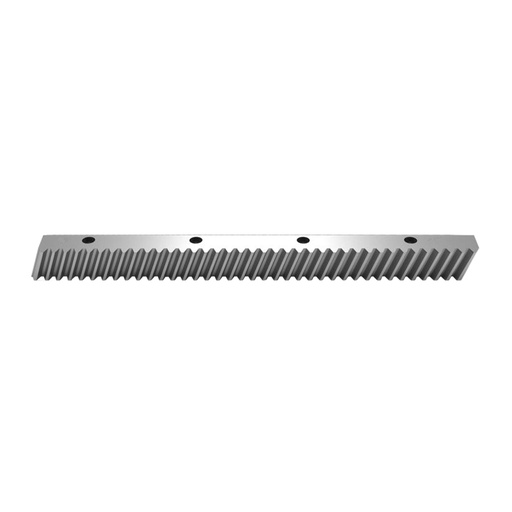

0208R150C10 Helical rack
Quality 8 / Carbon Steel
02 - Module
08 - Quality
R - Teeth angle (right-hand helical)
150 - Lenght (1500 mm)
C - Material (carbon steel)
1 - screw holes (standard)
0 - Coating (none)
Rack and pinion drive systems with “Quality 8” are recommended for the following applications:
• Welding machine;
• Robots;
• Automatic loading system;
• Linear axis with low load feed.
Analog:
• 157023 GUDEL;
• CHTM02010-DIN8 YYC;
• CHTMQ02010-DIN8 YYC;
| Žingsnis: 2 |
| Krumplių kampo tipas: Įstrižakrumpliai |
| Kokybė: 8 |
| Ilgis: 1500 |
