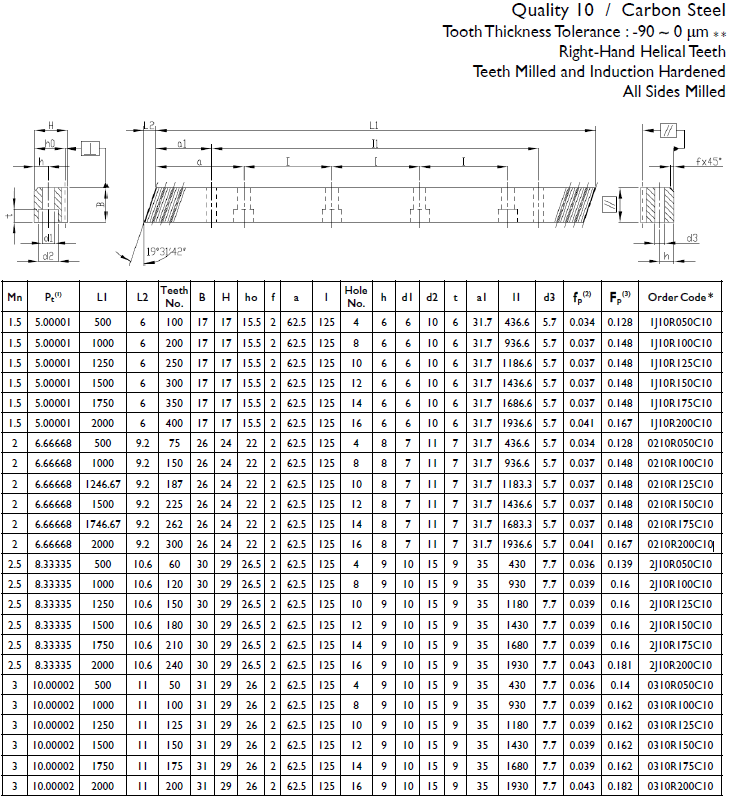

0210R200C10 Helical rack
Quality 10 / Carbon Steel

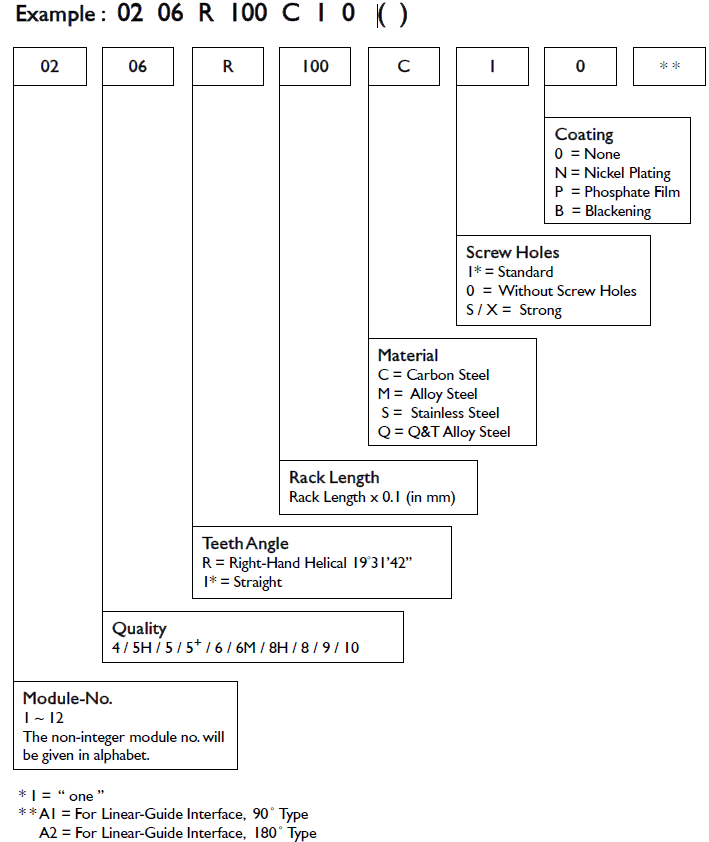

02 - Module
10 - Quality
R - Teeth angle (right-hand helical)
200 - Lenght (2000 mm)
C - Material (carbon steel)
1 - screw holes (standard)
0 - Coating (none)

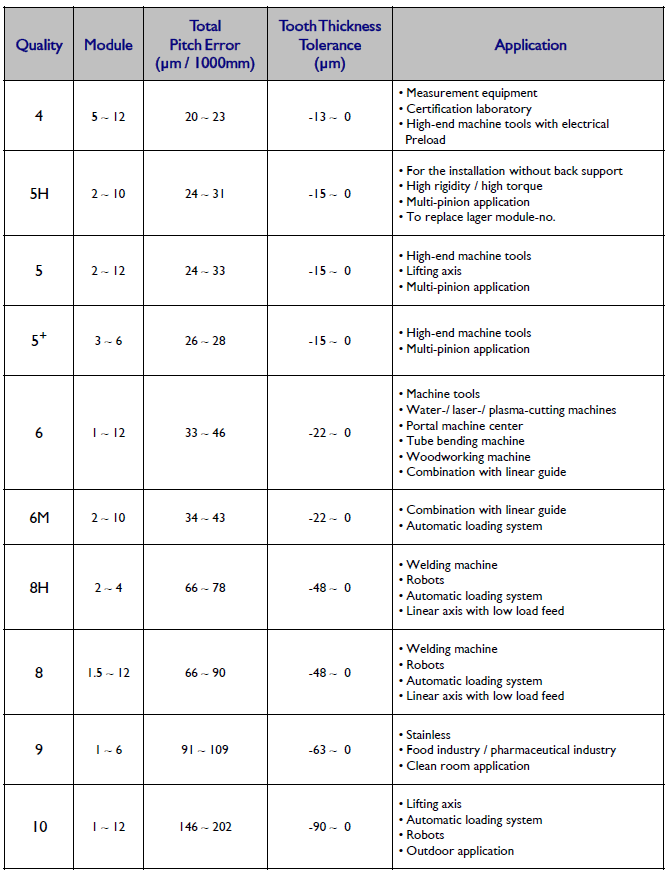

Rack and pinion drive systems with “Quality 10” are recommended for the following applications:
• Lifting axis;
• Automatic loading system;
• Robots;
• Outdoor application.
Analog:
• CHTMH02020-DIN10 YYC;
| Žingsnis: 2 |
| Krumplių kampo tipas: Įstrižakrumpliai |
| Kokybė: 10 |
| Ilgis: 2000 |
